Specification
Specifications

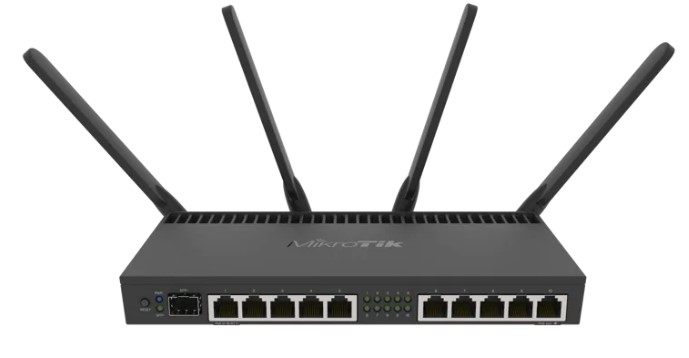

- Product codeRB4011iGS+5HacQ2HnD-IN
- Suggested price$275.00
- ArchitectureARM 32bit
- CPUAL21400
- CPU core count4
- CPU nominal frequencyauto (533 – 1900) MHz
- CPU Threads count4
- Switch chip modelRTL8367SB
- Dimensions228 x 120 x 30 mm
- RouterOS license5
- Operating SystemRouterOS v7
- Size of RAM1 GB
- Storage size512 MB
- Storage typeNAND
- MTBFApproximately 200’000 hours at 25C
- Tested ambient temperature-40°C to 45°C
Wireless capabilities
- Wireless 5 GHz Max data rate1733 Mbit/s
- Wireless 5 GHz Number of chains4
- Wireless 5 GHz standards802.11a/n/ac
- Antenna gain dBi for 5 GHz3
- Wireless 5 GHz chip modelQCA9984
- Wireless 5 GHz generationWi-Fi 5
- Wireless 2.4 GHz Max data rate300 Mbit/s
- Wireless 2.4 GHz Number of chains2
- Wireless 2.4 GHz standards802.11b/g/n
- Antenna gain dBi for 2.4 GHz3
- Wireless 2.4 GHz chip modelR11e-2HnD
- Wireless 2.4 GHz generationWi-Fi 4
- WiFi speedAC2000
Ethernet
- 10/100/1000 Ethernet ports10
Fiber
- SFP+ ports1
Peripherals
- MiniPCI-e slots1
- Serial console portRJ45
Powering
- Number of DC inputs2 (DC jack, PoE-IN)
- DC jack input Voltage12-57 V
- Max power consumption44 W
- Max power consumption without attachments23 W
- PoE inPassive PoE
- Cooling typePassive
- PoE in input Voltage18-57 V
PoE-out
- PoE-out portsEther10
- PoE outPassive PoE up to 57V
- Low voltage PoE-Out current limit600 mA
- High voltage PoE-Out current limit420 mA
- Max total out (A)600 mA
Certification & Approvals
- CertificationCE, FCC, IC, EAC, ROHS
- IPIP20
Other
- PCB temperature monitorYes
- Voltage MonitorYes
Included parts
